BIG.
STRONG.
FAST.

STORINATOR®
HYBRID
HDD & SSD SYSTEM

STORINATOR HYBRID

Some data storage applications require greater performance than can be achieved with mechanical hard drives alone. All-flash systems can seem to be a solution, but often exceed budget, especially for large data sets. Storinator Hybrid Servers can solve this problem. Hybrids combine both drive types into a single system, to give you the performance of SSD's, with the capacity and affordability of HDD’s.

STORINATOR HYBRIDS AS SINGLE SERVERS

Using a Storinator Hybrid as a standalone server will offer increased performance while still providing affordable cost per terabyte of storage. SSDs provide low latency and high throughput. HDD's in arrays provide fast throughput for medium and large files. Tiered storage strategies, and moving metadata and journaling to into flash will extract the most performance your storage. Hybrid servers also bring massive performance improvements to Windows Server.

Quote a Hybrid Server

STORINATOR HYBRIDS FOR CEPH CLUSTERING

Storinator Hybrids provide significant performance improvements in Ceph storage clusters. Data is stored on HDDs, and metadata and journals on SSD. This yields massive performance benefit, along with affordable cost per terabyte stored, in the right workloads. Talk to us to find out if your workload can benefit from Storinator Hybrids.

Clustered Storage
    ENHANCED TURBO

CPU CPU Model Intel Xeon Silver 4210
Intel Xeon Silver 4216
AMD EPYC 7281
Intel Xeon Gold 6230R
  CPU Architecture 64-bit 64-bit
  CPU Frequency 10 Core 2.2 (Base) / 3.2 (Turbo) GHz
16 Core 2.1 (Base) / 3.2 (Turbo) GHz
16 Core 2.1 (Base) / 2.7 (Turbo) GHz
26 Core 2.1 (Base) / 4.0 (Turbo) GHz

Memory System Memory Starting at 16GB DDR4 ECC RDIMM Starting at 16GB DDR4 ECC RDIMM
  Total Memory Slots 8 8
  Memory Expandable up to 512 GB (64 GB x 8) 512 GB (64 GB x 8)

Motherboard Make SuperMicro SuperMicro
  Model Intel Based: X11SPL
AMD Based: H11SSL
X11SPL

Power Non-Redundant Option 850W ATX Standard
  Redundant Power 1400W (@240VAC) 2N Redundant
1200W (@120VAC) 2N Redundant

Storage HDD Drive Bays F8X1 = 12 HDD Drive Bays
F8X2 = 24 HDD Drive Bays
F8X3 = 36 HDD Drive Bays
XL60H32 = 45 HDD Drive Bays / 52 HDD Drive Bays
  Maximum Internal Raw HDD Capacity F8X1: HDD 288TB*
F8X2: HDD 576TB*
F8X3: HDD 864TB*
XL60H32: HDD 1248TB*
( * using 24TB HDD Drives)
  SSD Drive Bays F8X1: 8 SSD Drive Bays
F8X2: 16 SSD Drive Bays
F8X3: 24 SSD Drive Bays
XL60H32: 32 SSD Drive Bays / 16 SSD Drive Bays
  Maximum Internal Raw SSD Capacity F8X1: SSD 60.8TB*
F8X2: SSD 121.6TB*
F8X3: SSD 182.4TB*
XL60H32: SSD 243.2TB*
( * using 7.6TB SSD Drives)

PCIe PCIe Expansion X11SPL:
2 PCI-E 3.0 x8 (in x16 slot)
4 PCI-E 3.0 x8
1 PCI-E 3.0 x4 (in x8 slot)

H11SSL:
3 PCI-E 3.0 x16
3 PCI-E 3.0 x8

Network Ports 1Gbe LAN Port Dual 1Gbe on board Dual 1Gbe on board
  10Gbe NIC Option Optional NIC (RJ45 or SFP+) Optional NIC (RJ45 or SFP+)
  25Gbe NIC Option Optional NIC (SFP28) Optional NIC (SFP28)
  40Gbe NIC Option Optional NIC (QSFP+) Optional NIC (QSFP+)

Chassis Form Factor (RU) 4U
  Dimensions F8X1: 25.34"L x 17.12" W x 6.86"H
F8X2: 30.5"L x 17.12" W x 6.86"H
F8X3: 36.23"L x 17.12" W x 6.86"H
XL60H32: 37.500"L x 17.125" W x 7.000"H
  Weight F8X2: 55 LBS (With 30 Drives: 105 LBS)
F8X3: 65 LBS (With 15 Drives: 140 LBS)
XL60H32: 80 LBS (With 15 Drives: 180 LBS)


INTRODUCING THE GENERATION 2.0 HYBRID

The Storinator hybrid was redesigned to better serve your Ceph and ZFS applications with a suite of hardware improvements and an improved drive ratio. The generation 2.0, F8X line of hybrids has a standardized HDD:SSD split, with 12 HDDs per row and 8 SSDs per row.

MODELS

Card image cap
Storinator Hybrid F8X1

Drive Bays: 12 HDD - 8 SSD bays

Dimensions: 25.34" x 17.12" x 6.86"

Maximum Capacity HDD*: 288TB

Maximum Capacity SSD*: 60.8TB

Card image cap

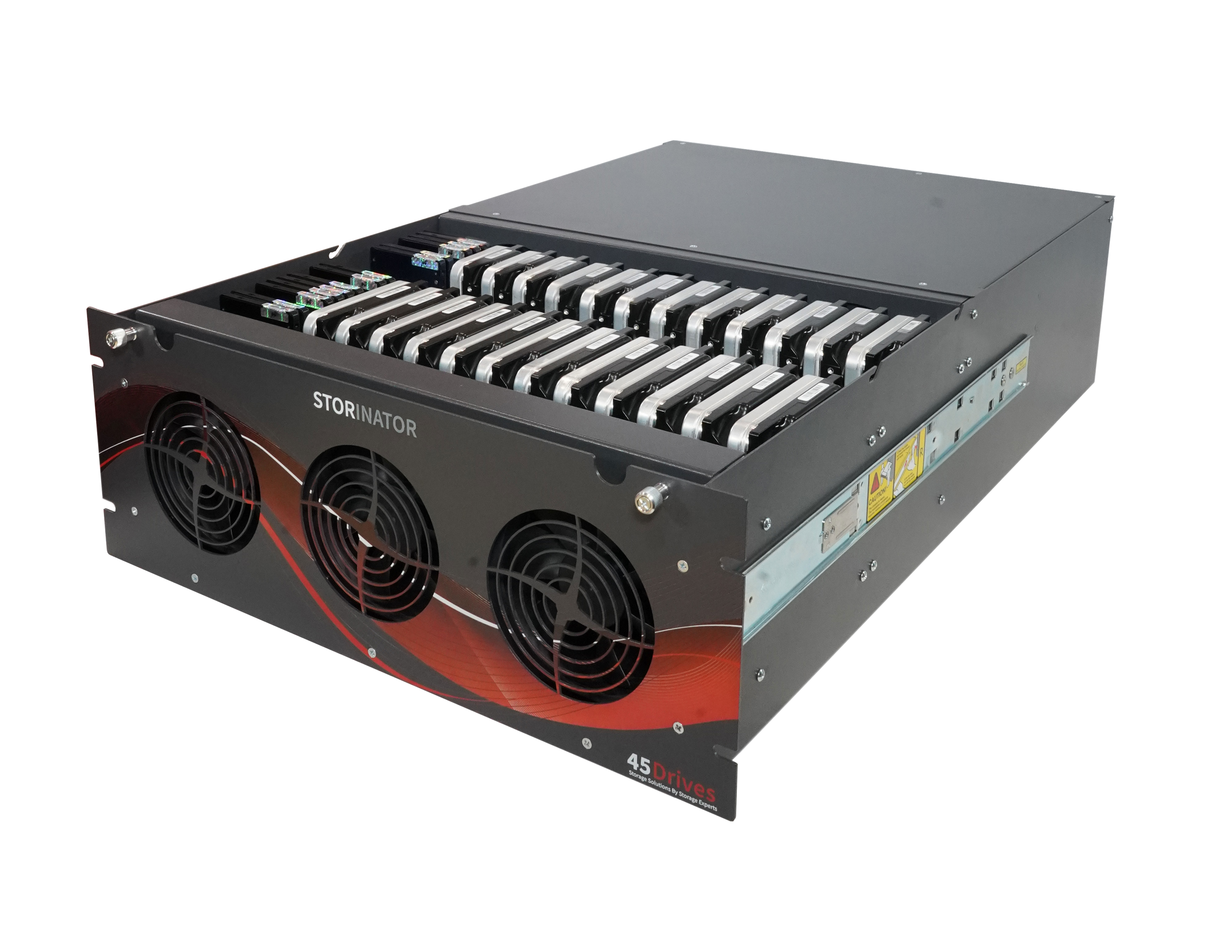

Storinator Hybrid F8X2

Drive Bays: 24 HDD - 16 SSD bays

Dimensions: 30.5" x 17.12" x 6.86"

Maximum Capacity HDD*: 576TB

Maximum Capacity SSD*: 121.6TB

Card image cap

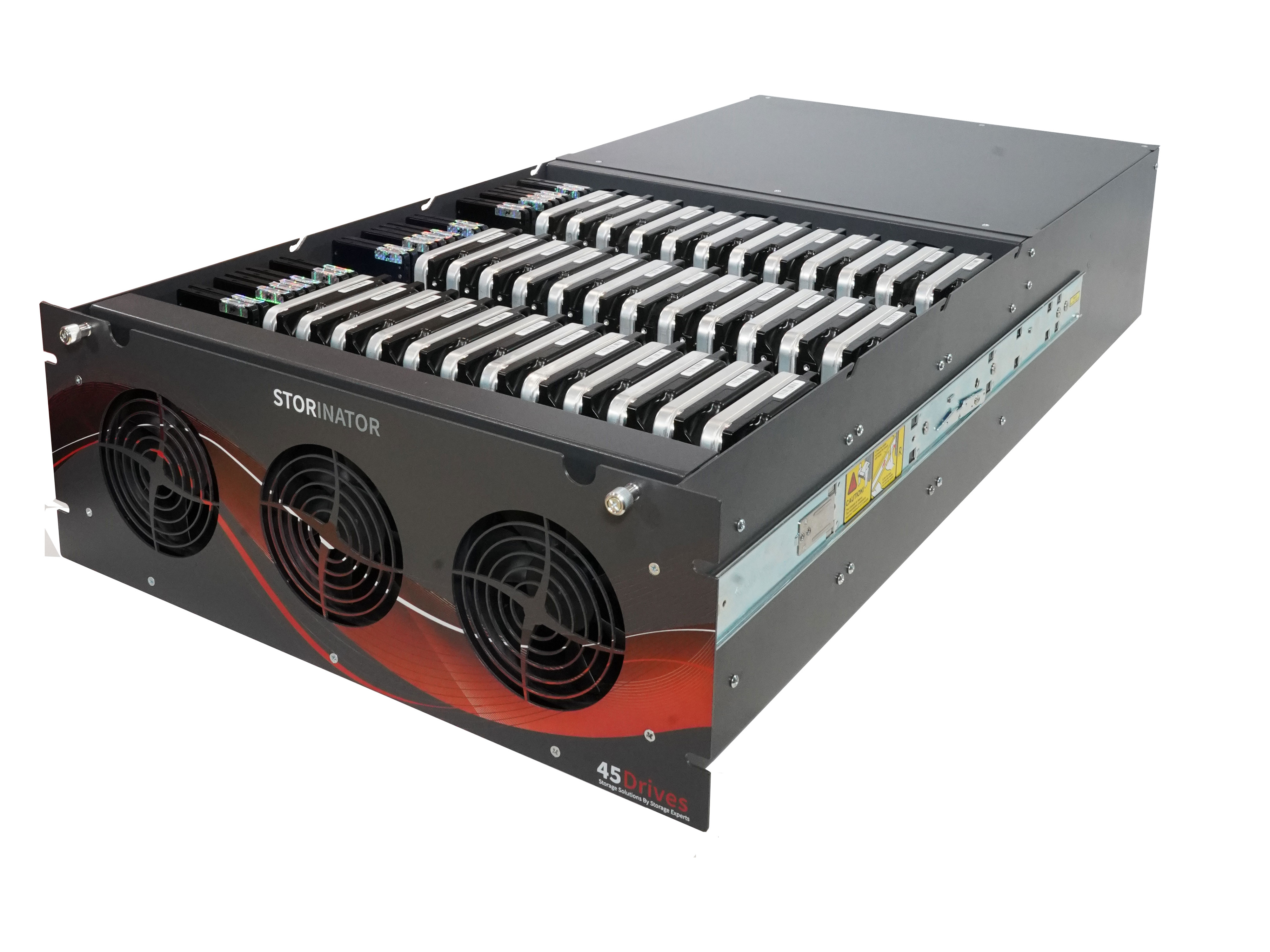

Storinator Hybrid F8X3

Drive Bays: 36 HDD - 24 SSD bays

Dimensions: 36.23" x 17.12" x 6.86"

Maximum Capacity HDD*: 864TB

Maximum Capacity SSD*: 182.4TB

Card image cap
Storinator Hybrid XL60H32

Drive Bays: 45 HDD - 32 SSD bays
52 HDD - 16 SSD bays

Dimensions: 37.5" x 17.12" x 6.86"

Maximum Capacity HDD*: 1080TB - 1248TB

Maximum Capacity SSD*: 364.8TB

* Assuming 24TB HDD's and 7.6TB SSD’s
