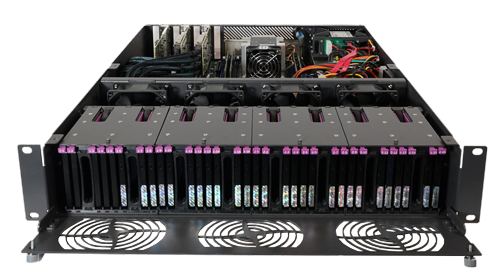

STORNADO

The 2U Stornado design can significantly improve performance over HDD, offers cooler running temperatures, and decreased power draw.

Engineered for Performance

This all-flash server is designed to deliver redundancy and reliability while quickly moving massive amounts of data.

The 32-bay all-flash storage server offers low-latency performance that is affordable for all industries. With the Stornado's smaller form factor, you'll achieve greater densities, best performance and fast access to your data while saving energy costs due to a decreased power draw.

Stornado Hardware Features:

  • Half the Height / Double the Density (32 bays)
  • Front Loaded SSD Drive Insertion and Removal Mechanism
  • Ejection rod labelling for easy drive location
  • Removeable boot-drive bracket for easy access
  • SATA Drives Now, NVME Drives Coming Soon
  • Completely toolless

Software

The Stornado is software agnostic. This server offers the freedom to run any software you choose, including Linux, CentOS, Debian, FreeBSD, Windows Server, and NAS software. Storinator servers will also run cluster software such as Ceph.

Futureproofing

This ultra-dense 2U storage server offers easy storage scalability. Scale your SSD storage by simply adding more SSDs into a single unit or adding units as separate servers or part of a cluster.

Support

When you choose a 45Drives storage server you get an extremely reliable, affordable, enterprise product and a whole team to help you every step of the way. Learn More

Models

    ENHANCED TURBO

CPU CPU Model Intel Xeon Silver 4110 Intel Xeon Gold 6230R
  CPU Architecture 64-bit 64-bit
  CPU Frequency 8-Core 2.1 (base) / 3.0 (turbo) GHz 26-Core 2.1 (base) / 4.0 (turbo) Ghz

Memory System Memory 16 GB DDR4 ECC RDIMM 32 GB DDR4 ECC RDIMM
  Total Memory Slots 8 8
  Memory Expandable up to 512 GB (64 GB x 8) 512 GB (64 GB x 8)

Motherboard Make SuperMicro SuperMicro
  Model X11SPL X11SPL

Power Power Supply Unit 850W ATX Standard 850W ATX Standard
  Redundant Power 1400W 2N Redundant 1400W 2N Redundant

Storage Drive Bays 32 32
  Maximum Internal Raw Capacity 243.2TB
( * using 7.6 TB Drives )
  Hot Swappable Drive Yes Yes

PCIe PCIe Expansion 2 PCI-E 3.0 x8 (in x16 slot)
4 PCI-E 3.0 x8
1 PCI-E 3.0 x4 (in x8 slot)
2 PCI-E 3.0 x8 (in x16 slot)
4 PCI-E 3.0 x8
1 PCI-E 3.0 x4 (in x8 slot)

Performance Random 4k IO/s 728000 (Write)
732000 (Read)

Network Ports 1Gbe LAN Port Dual 1Gbe on board Dual 1Gbe on board
  10Gbe NIC Option Optional NIC (RJ45 or SFP+)
(Included on all S45 & XL60 Models)
Optional NIC (RJ45 or SFP+)
(Included on all S45 & XL60 Models)
  25Gbe NIC Option Optional NIC (SFP28) Optional NIC (SFP28)
  40Gbe NIC Option Optional NIC (QSFP+) Optional NIC (QSFP+)

Chassis Form Factor (RU) 2U 2U
  Dimensions 23.000"L x 17.125" W x 3.500"H
  Weight 37 LBS


Coming Soon

The ALL NEW Stornado 32 Bay All-Flash NVMe Storage Server will use NVMe protocol to connect SSDs. With NVMe high-speed protocol, we increase performance with near-zero latency for applications that truly demand the highest speed and performance without any latency.

Sign Up to receive updates and early NVMe Access
