Working in government can mean strict budget requirements. Do more with less by using a 45Drives Solution. Open-source and open-platform architecture allows you to use the densest, enterprise storage-system on the market – at a fraction of the cost of legacy vendors.
Government work can mean red-tape and strict regulatory requirements. We make it easy by working with your reseller partners while simplifying the sales process for you.
Storing data to your organization’s regulations doesn’t need to be a challenge. 45Drives has helped government organizations store to a wide range of standards, without any hiccups, and within their budget. We make it easy by working with your reseller partners while simplifying the sales process for you.
45Drives can provide your organization the storage you need – at an unmatched price. Single 15-bay servers starting at $2,480 and entry-level clusters from $20,000. Data can be scaled one drive at a time to be flexible with your projects budget and transition storage payments to OpEx.
Every storage server is custom made to order, so you can be sure you're getting exactly what your business needs, without overpaying or facing the proprietary restrictions of larger competitors.

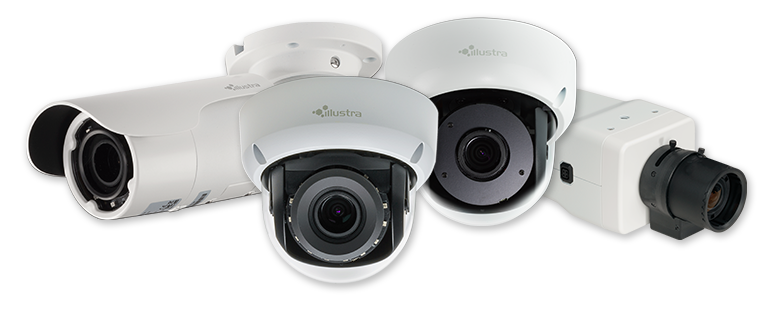

The data produced by surveillance is increasing rapidly. New ways of recording are gaining prominence in the form of body cameras, drones, dash cams and a huge amount of traditional security cameras. 45Drives is here to help you get the densest, most affordable storage on the market today.
You shouldn’t be spending all your money on infrastructure. Open-source, open-platform, and fully supported – the Storinator won’t just store your data, it will save you money and headaches.
To give you a better understanding of the Storinator's capabilities, below are examples of how many 4K cameras a Storinator can manage using maximum throughput in different resolutions.
Chassis | SD | HD | 4k | Capacity (TB) |
---|---|---|---|---|
15 Drive | 13587 | 6024 | 1628 | 156 |
30 Drive | 13587 | 6024 | 1628 | 312 |
45 Drive | 13587 | 6024 | 1628 | 468 |
60 Drive | 13587 | 6024 | 1628 | 624 |
Resolution | Bandwidth/Camera kb/s |
---|---|
SD | 1472 |
HD | 3320 |
4k | 12288 |
Assumptions | |
---|---|
FPS | 15 |
CODEC | H.264 |
HDD Size (TB) | 12 |
Parity | 2 |
140 Cameras
Set-up:
• 1 VMS (Storinator)
• 1GbE Network - Dedicated to cameras
Breakdown:
• 1/3 of network for recording stream to VMS
• 1/3 of network for live view of cameras
• 1/3 of network for recorded view going to users
Notes:
• Network assumes 15% overhead, 870Mbps available
• Each stream has 290Mbps
• 2 Mbps stream per camera
400 Cameras
Set-up:
• 1 VMS (Storinator) - with two 1 gigabit connections
• 1GbE Network - Dedicated to cameras
Breakdown:
• 100% of network for recording stream to VMS
• live view of cameras pushed through VMS to second network
Notes:
• Assumes VMS can record and transmit at same time
1400 Cameras
Set-up:
• 1 VMS (Storinator)
• 10GbE Network - Dedicated to cameras
Breakdown:
• 1/3 of network for recording stream to VMS
• 1/3 of network for live view of cameras
• 1/3 of network for recorded view going to users
Notes:
• Network assumes 15% overhead, 870Mbps available
• Each stream has 290Mbps
• 2 Mbps stream per camera
4000 Cameras
Set-up:
• 1 VMS (Storinator) - with two 10 gigabit connections
• 10GbE Network - Dedicated to cameras
Breakdown:
• 100% of network for recording stream to VMS
• live view of cameras pushed through VMS to second network
Notes:
• Assumes VMS can record and transmit at same time
